Introduccion EDO con Python

Author

Affiliation

Luis E. Ascencio G.

CIMAT

Abstract

En este NoteBook encontraras codigo para manejar EDO con el lenguaje de programacion Python.

Keywords

Ecuaciones Diferenciales Ordinarias, Metodos Numericos, Campos Vectoriales, Curvas Integrales

from sympy import symbols, Eq, latex, pprint
from IPython.display import display, Math
import sympy as sp

X, Y = symbols('X Y')

import numpy as np
import matplotlib.pyplot as plt
from scipy.integrate import solve_ivp

# ==========================================
# 1. User Definitions & Configuration
# ==========================================

# Configuration Parameters
CONFIG = {
    'x_range': (-3, 3),      # Domain for x
    'y_range': (-3, 3),      # Domain for y
    'grid_density': 25,      # Density of arrows in vector field
    'num_integral_curves': 25, # Number of curves for Figure 2pip install myst-parser sphinx

    'specific_ics': [-3,-2,-1,-0.5,0,0.5,1,2,3], # Specific initial conditions y(x_start) for Figure 3
    'resolution': 500        # Resolution for numerical integration steps
}

# ==========================================
# 2. Visualization Functions
# ==========================================

def plot_vector_field(ode_text, f, x_lim, y_lim, density=20):
    """
    Figure 1: Generates the Vector Field (Slope Field).

    Mathematical Context:
    At every point (x, y), the ODE defines a slope m = f(x,y).
    The vector at that point is <1, f(x,y)>.
    We normalize these vectors to show direction without magnitude distortion.
    """
    fig = plt.figure(figsize=(10, 8))

    # Create a grid of points
    x = np.linspace(x_lim[0], x_lim[1], density)
    y = np.linspace(y_lim[0], y_lim[1], density)
    X, Y = np.meshgrid(x, y)

    # Calculate vector components
    # dx is constant (1), dy is the function output
    U = np.ones_like(X)
    V = f(X, Y)

    # Normalize the arrows (make them all unit length for clarity)
    # Magnitude N = sqrt(U^2 + V^2)
    N = np.sqrt(U**2 + V**2)
    U = U / N
    V = V / N

    # Plot Quiver
    plt.quiver(X, Y, U, V, angles='xy', scale_units='xy', scale=3, color='#555555', width=0.003)

    # Styling
    plt.title("Figure 1: Vector Field (Direction Field)", fontsize=16)
    plt.xlabel("x", fontsize=14)
    plt.ylabel("y", fontsize=14)
    plt.xlim(x_lim)
    plt.ylim(y_lim)
    plt.grid(True, linestyle='--', alpha=0.6)
    plt.axhline(0, color='black', linewidth=1)
    plt.axvline(0, color='black', linewidth=1)

    # Add equation text
    plt.text(x_lim[0] + 0.5, y_lim[1] - 0.5, f'$dY/dX={sp.latex(ode_text)}$',
             fontsize=14, bbox=dict(facecolor='white', alpha=0.8))

    plt.tight_layout()
    plt.show()

def plot_integral_curves(ode_text, f, x_lim, y_lim, num_curves=20):
    """
    Figure 2: Plots a dense set of integral curves to show flow.

    Method:
    We define a range of initial conditions along the left boundary (x_min)
    and integrate forward to x_max using Runge-Kutta 4(5).
    """
    fig = plt.figure(figsize=(10, 8))

    # Generate initial conditions along the left edge
    y0_values = np.linspace(y_lim[0], y_lim[1], num_curves)
    x_span = x_lim

    # Evaluation points for smooth curves
    t_eval = np.linspace(x_lim[0], x_lim[1], CONFIG['resolution'])

    # Plot background vector field faintly for context
    x_grid = np.linspace(x_lim[0], x_lim[1], 20)
    y_grid = np.linspace(y_lim[0], y_lim[1], 20)
    X, Y = np.meshgrid(x_grid, y_grid)
    U = np.ones_like(X)
    V = f(X, Y)
    N = np.sqrt(U**2 + V**2)
    plt.quiver(X, Y, U/N, V/N, alpha=0.2, color='gray')

    # Solve and plot each curve
    print(f"Generating {num_curves} integral curves...")
    for y0 in y0_values:
        # solve_ivp requires function signature fun(t, y)
        sol = solve_ivp(f, x_span, [y0], t_eval=t_eval, method='RK45')

        if sol.success:
            plt.plot(sol.t, sol.y[0], '-', color='teal', alpha=0.6, linewidth=1.5)

    # Styling
    plt.title("Figure 2: Integral Curves (General Flow)", fontsize=16)
    plt.xlabel("x", fontsize=14)
    plt.ylabel("y", fontsize=14)
    plt.xlim(x_lim)
    plt.ylim(y_lim)
    plt.grid(True, linestyle='--', alpha=0.6)
    plt.axhline(0, color='black', linewidth=1)
    plt.axvline(0, color='black', linewidth=1)
    # Add equation text
    plt.text(x_lim[0] + 0.5, y_lim[1] - 0.5, f'$dY/dX={sp.latex(ode_text)}$',
             fontsize=14, bbox=dict(facecolor='white', alpha=0.8))

    plt.tight_layout()
    plt.show()

def plot_specific_solutions(ode_text, f, x_lim, y_lim, initial_conditions):
    """
    Figure 3: Plots specific, labeled numerical solutions.

    Use Case:
    Highlighting specific behaviors based on exact starting points.
    """
    fig = plt.figure(figsize=(10, 8))

    x_span = x_lim
    t_eval = np.linspace(x_lim[0], x_lim[1], CONFIG['resolution'])

    colors = plt.cm.viridis(np.linspace(0, 0.9, len(initial_conditions)))

    print("Generating specific solutions...")
    for i, y0 in enumerate(initial_conditions):
        sol = solve_ivp(f, x_span, [y0], t_eval=t_eval, method='RK45')

        if sol.success:
            label_text = f"$y({x_lim[0]}) = {y0}$"
            plt.plot(sol.t, sol.y[0], linewidth=2.5, color=colors[i], label=label_text)

            # Mark the initial condition point
            plt.scatter([x_lim[0]], [y0], color=colors[i], s=50, zorder=5)

    # Styling
    plt.title("Figure 3: Specific Numerical Solutions", fontsize=16)
    plt.xlabel("x", fontsize=14)
    plt.ylabel("y", fontsize=14)
    plt.xlim(x_lim)
    plt.ylim(y_lim)
    plt.grid(True, linestyle='--', alpha=0.6)
    plt.legend(title="Initial Conditions", loc='best', frameon=True, shadow=True)
    plt.axhline(0, color='black', linewidth=1)
    plt.axvline(0, color='black', linewidth=1)
    # Add equation text
    plt.text(x_lim[0] + 0.5, y_lim[1] - 0.5, f'$dY/dX={sp.latex(ode_text)}$',
             fontsize=14, bbox=dict(facecolor='white', alpha=0.8))

    plt.tight_layout()
    plt.show()

# ==========================================
# 3. Main Execution Block
# ==========================================

def plots_ODE(ode_f,ode_text):
    print("--- Differential Equation Visualizer ---")
    display(Math(f"dY/dX = {latex(ode_text)}"))
    print(f"Domain: x in {CONFIG['x_range']}, y in {CONFIG['y_range']}")

    # 1. Plot Vector Field
    plot_vector_field(
        ode_text,
        ode_f,
        CONFIG['x_range'],
        CONFIG['y_range'],
        density=CONFIG['grid_density']
    )

    # 2. Plot Integral Curves (Flow)
    plot_integral_curves(
        ode_text,
        ode_f,
        CONFIG['x_range'],
        CONFIG['y_range'],
        num_curves=CONFIG['num_integral_curves']
    )

    # 3. Plot Specific Solutions
    plot_specific_solutions(
        ode_text,
        ode_f,
        CONFIG['x_range'],
        CONFIG['y_range'],
        initial_conditions=CONFIG['specific_ics']
    )

Primer Ejemplo

Graficamos los campos vectoriales, curvas integrales y soluciones con condiciones iniciales de la EDO \(\frac{dy}{dx}= -0.5y\)

def ode_f1(x, y):
    """
    Defines the First-Order ODE: dy/dx = f(x, y).

    Example: dy/dx = -0.5*y

    Parameters:
        x (float): Independent variable (often time).
        y (float): Dependent variable.

    Returns:
        float: The derivative dy/dx at (x, y).
    """
    return -0.5*y

###### Symbols ODE ##############3
edo1=-0.5*Y

plots_ODE(ode_f1,edo1)

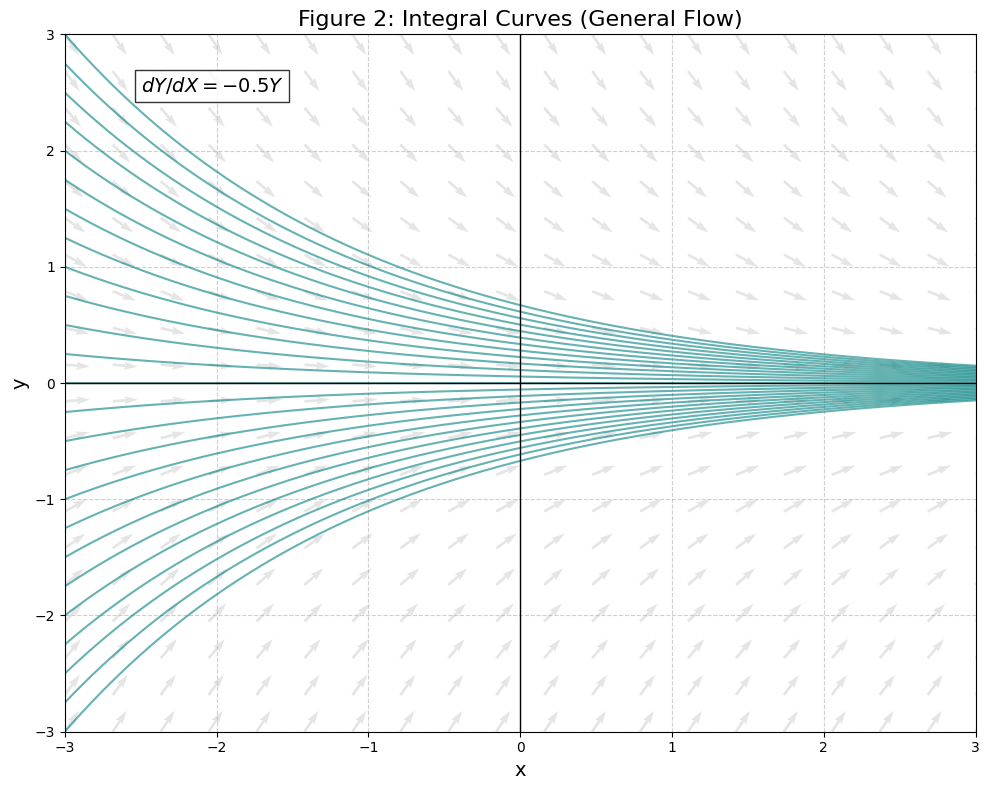

--- Differential Equation Visualizer ---

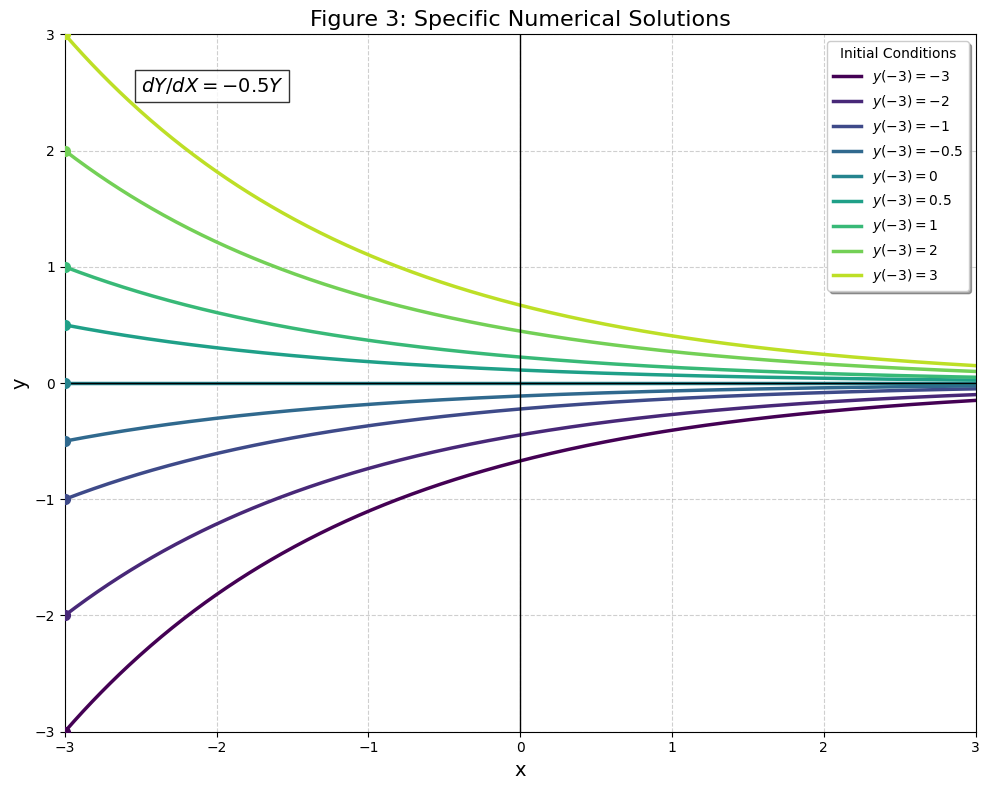

\(\displaystyle dY/dX = - 0.5 Y\)

Domain: x in (-3, 3), y in (-3, 3)

Generating 25 integral curves...

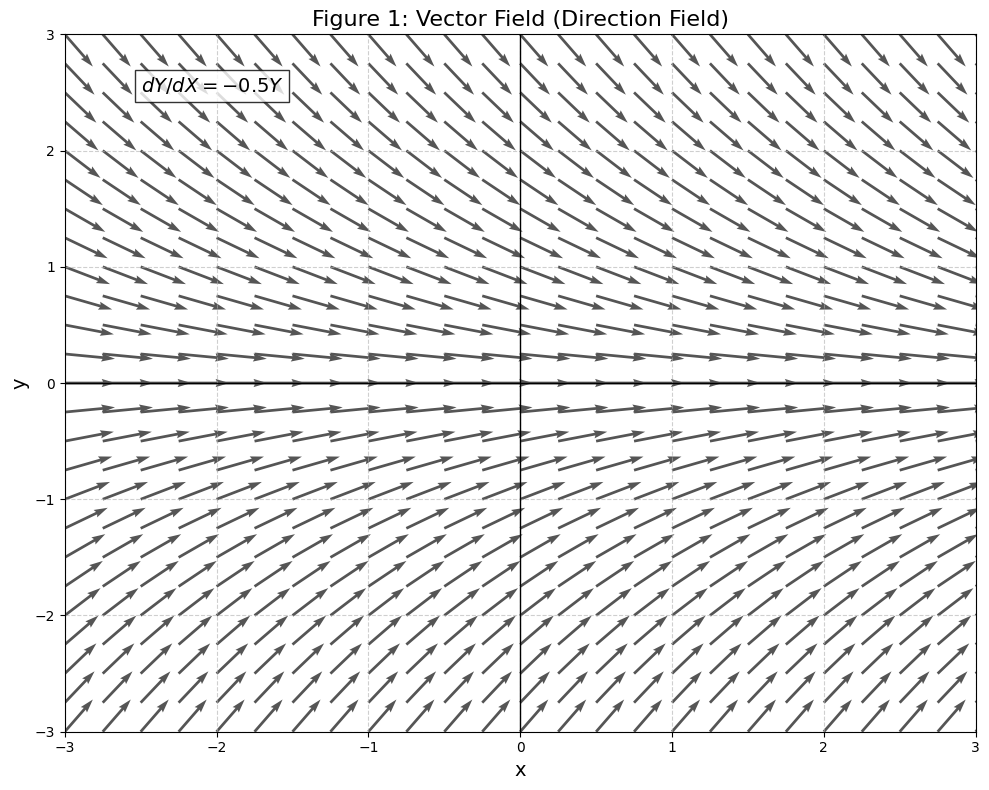

Generating specific solutions...

Segundo Ejemplo

Graficamos los campos vectoriales, curvas integrales y soluciones con condiciones iniciales de la EDO \(\frac{dy}{dx}= y^2\)

def ode_f2(x, y):
    return y**2

###### Symbols ODE ##############
edo2=Y**2

##### Show Graphics #######
plots_ODE(ode_f2,edo2)

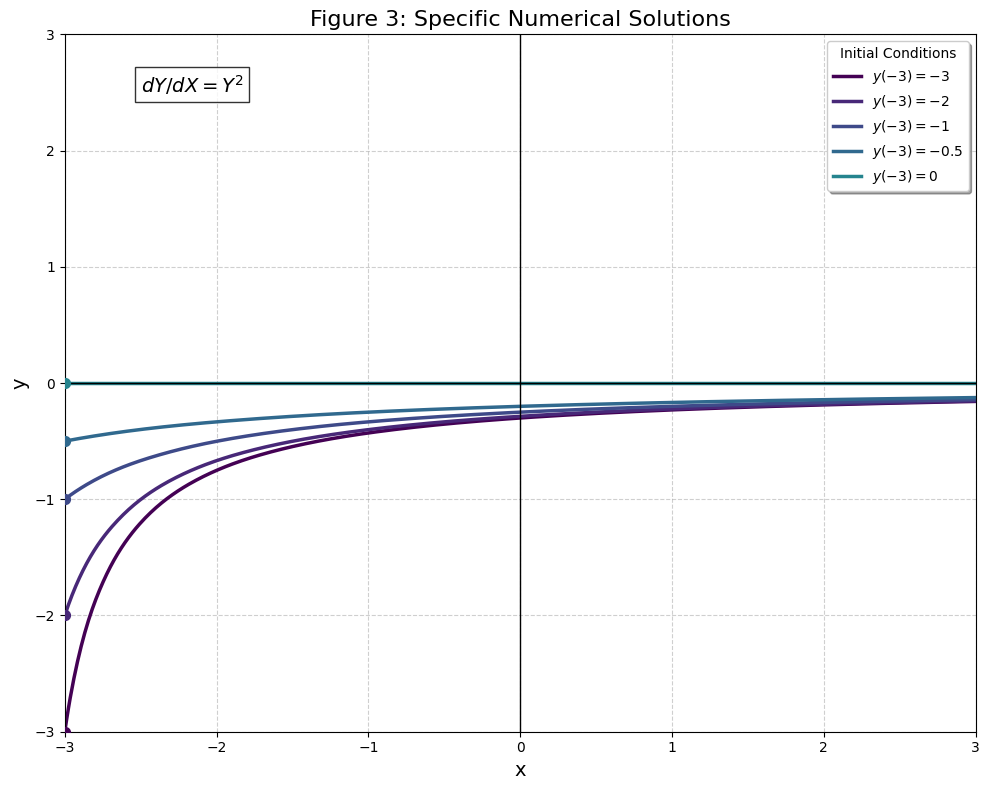

--- Differential Equation Visualizer ---

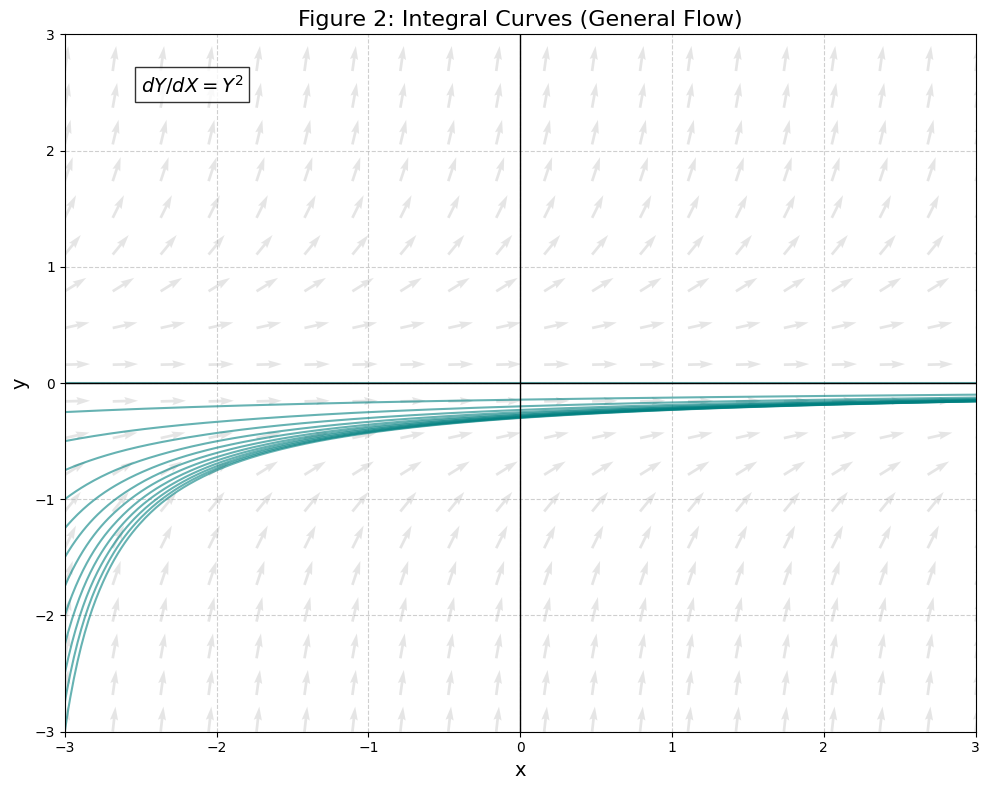

\(\displaystyle dY/dX = Y^{2}\)

Domain: x in (-3, 3), y in (-3, 3)

Generating 25 integral curves...

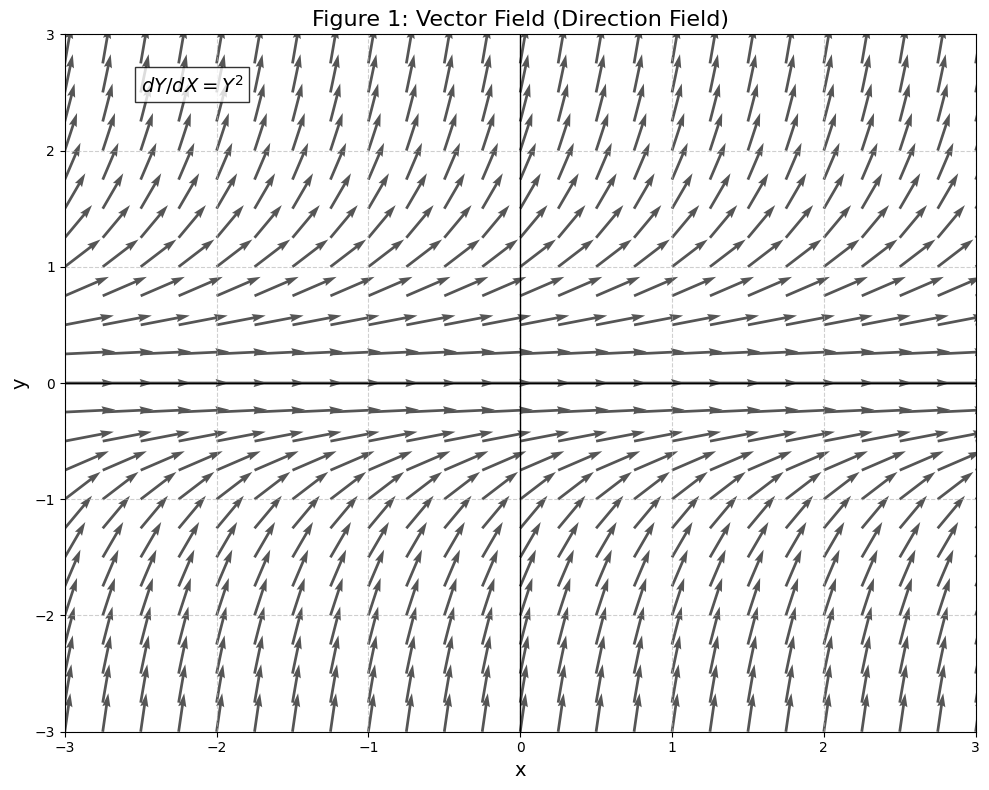

Generating specific solutions...

Tercer Ejemplo

Graficamos los campos vectoriales, curvas integrales y soluciones con condiciones iniciales de la EDO \(\frac{dy}{dx}=y-\sin(x)\)

def ode_f3(x, y):
    return y-np.sin(x)

###### Symbols ODE ##############3
edo3=Y-sp.sin(X)

##### Show Graphics #######
plots_ODE(ode_f3,edo3)

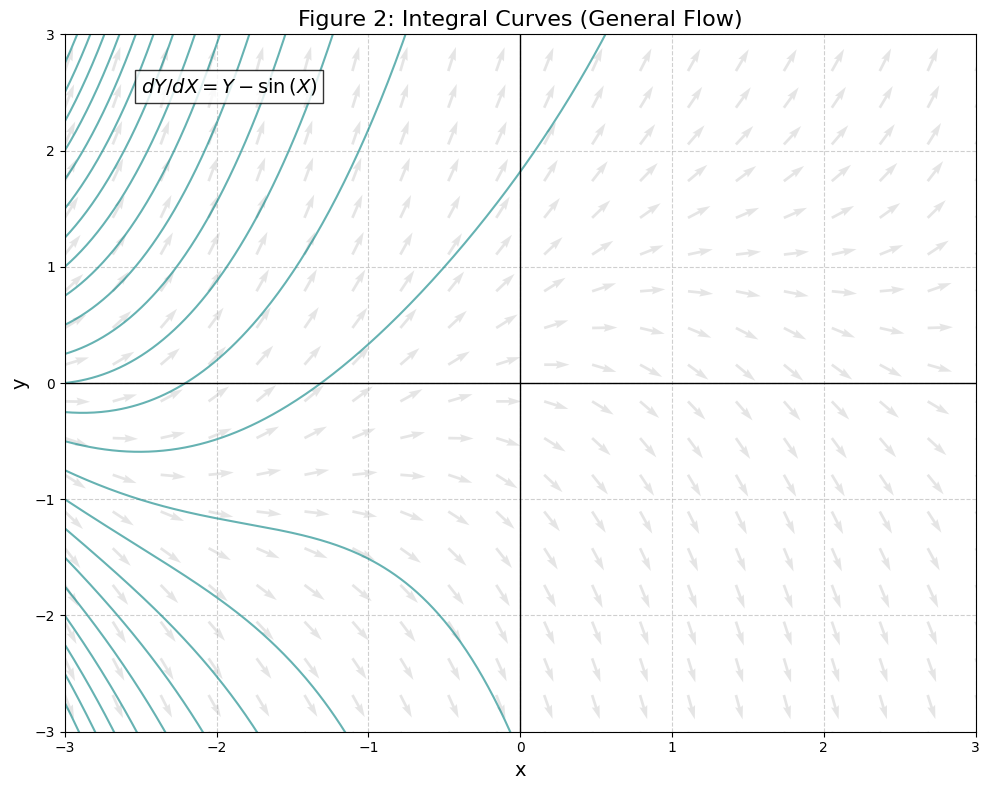

--- Differential Equation Visualizer ---

\(\displaystyle dY/dX = Y - \sin{\left(X \right)}\)

Domain: x in (-3, 3), y in (-3, 3)

Generating 25 integral curves...

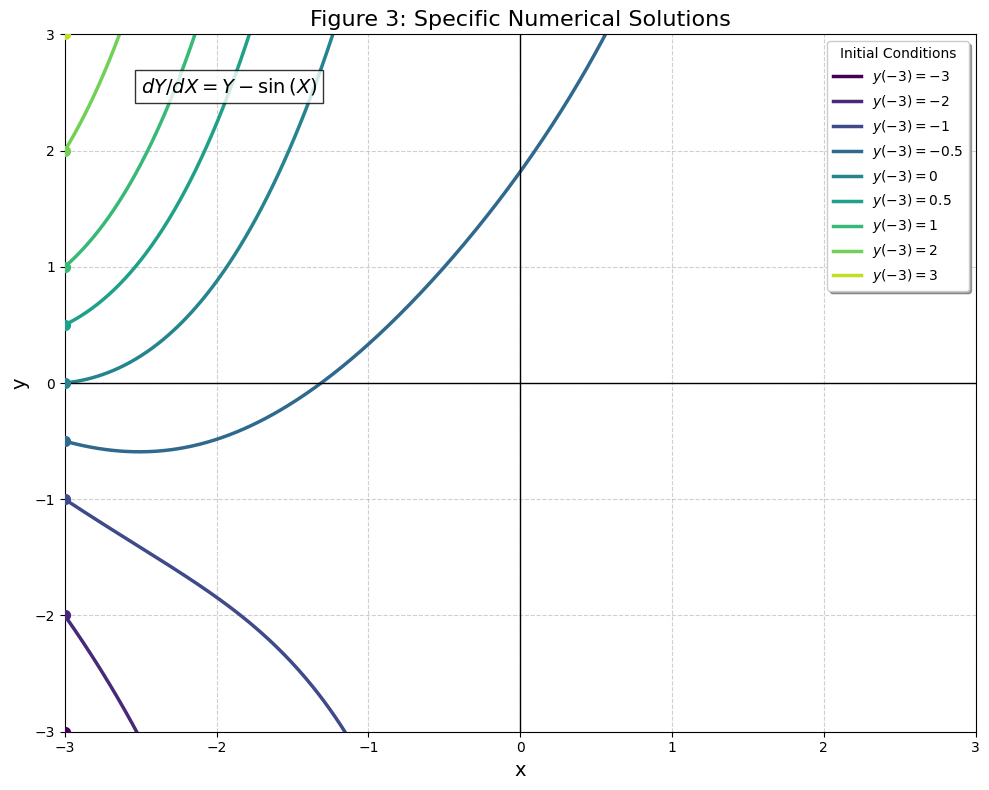

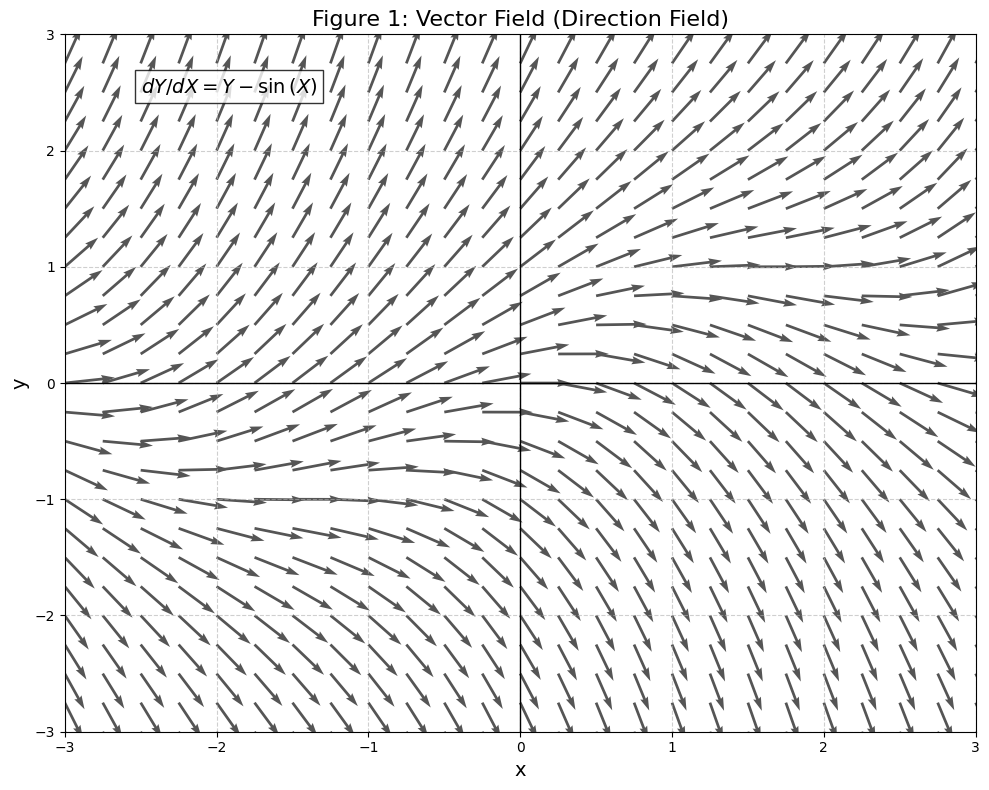

Generating specific solutions...

Cuarto Ejemplo

Graficamos los campos vectoriales, curvas integrales y soluciones con condiciones iniciales de la EDO \(\frac{dy}{dx}=-x^2+\sin(y)\)

def ode_f4(x, y):
    return -x**2+np.sin(y)

###### Symbols ODE ##############3
edo4=-X**2+sp.sin(Y)

##### Show Graphics #######
plots_ODE(ode_f4,edo4)

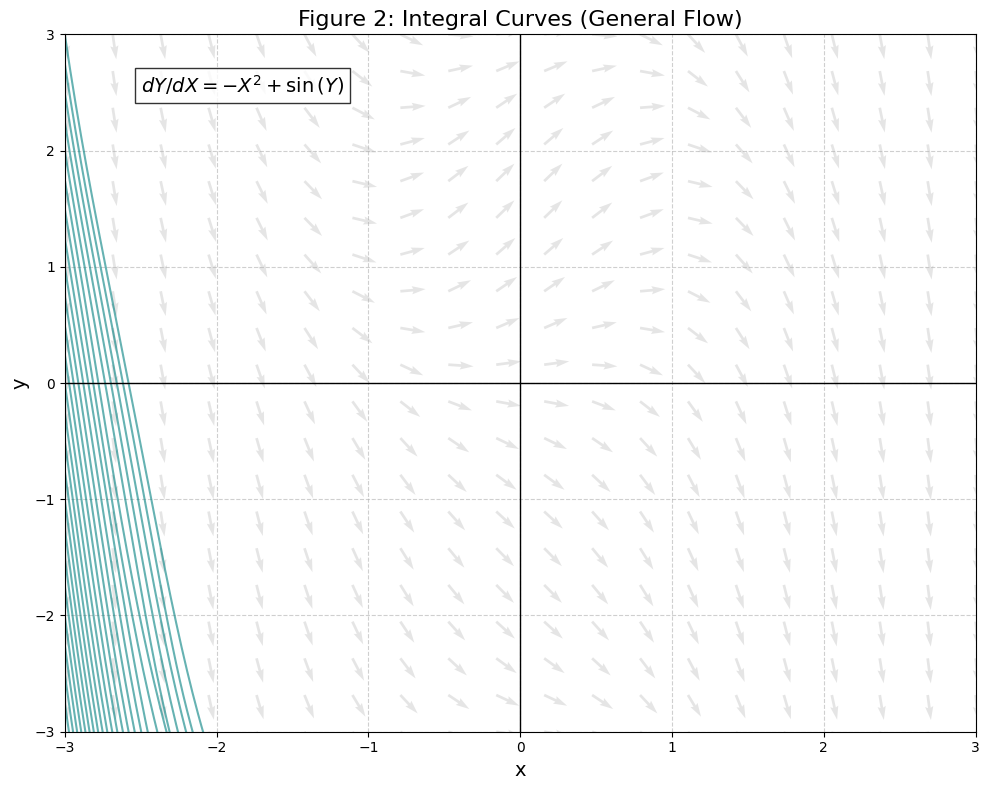

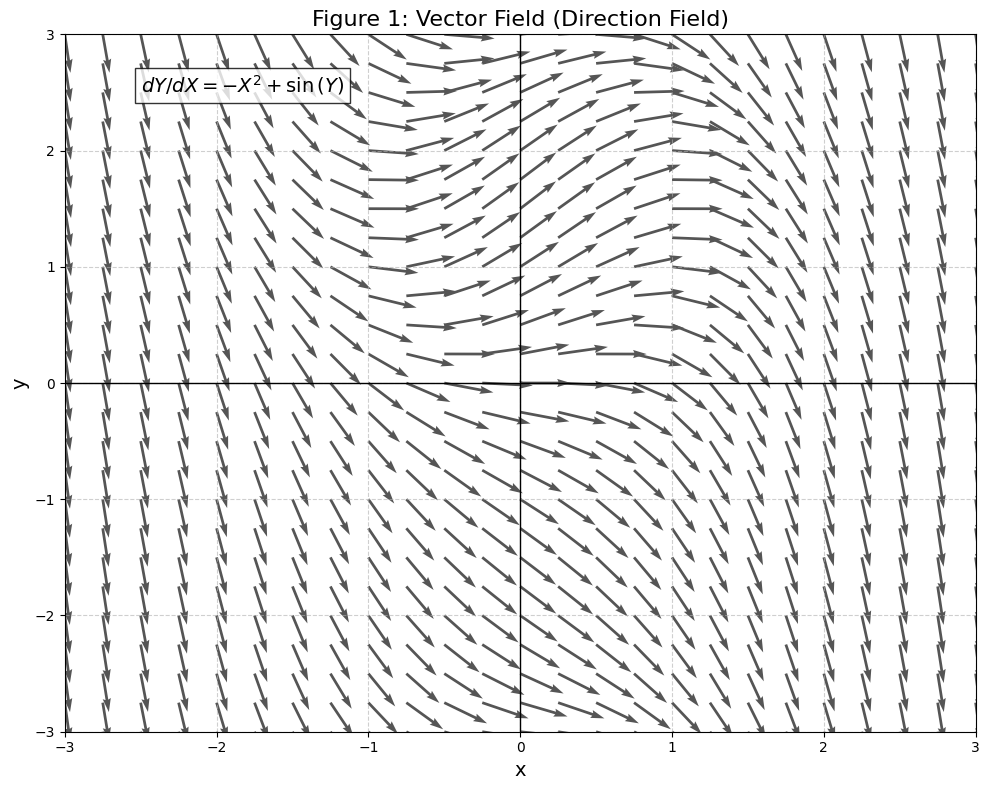

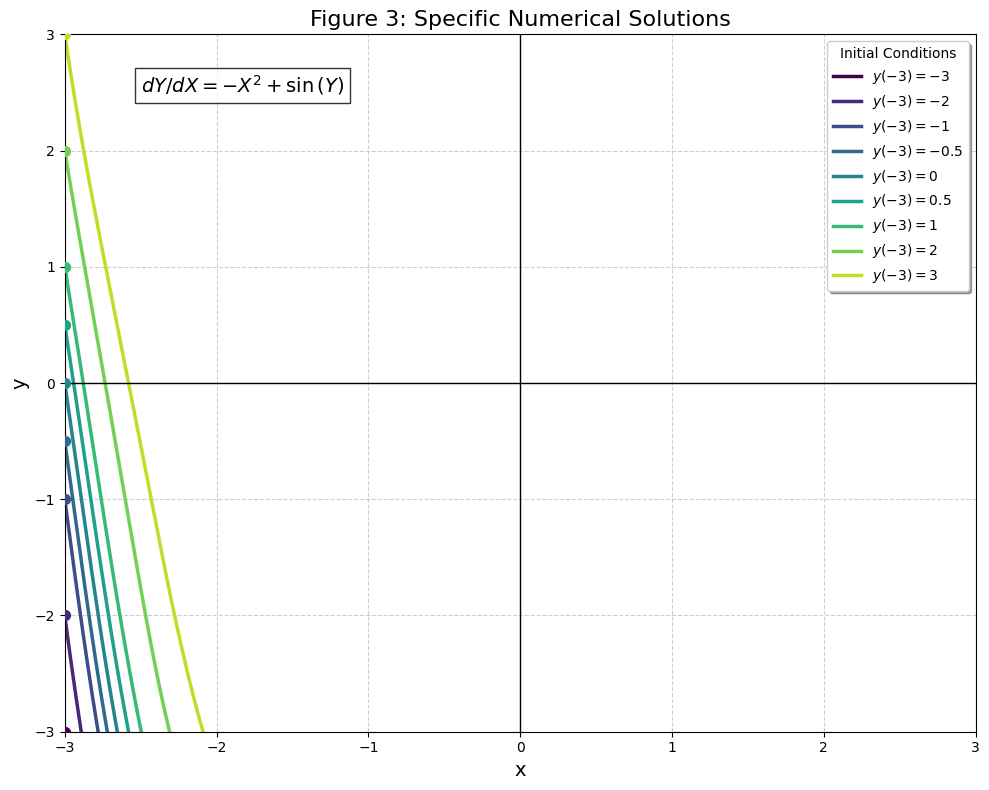

--- Differential Equation Visualizer ---

\(\displaystyle dY/dX = - X^{2} + \sin{\left(Y \right)}\)

Domain: x in (-3, 3), y in (-3, 3)

Generating 25 integral curves...

Generating specific solutions...

Quinto Ejemplo

Graficamos los campos vectoriales, curvas integrales y soluciones con condiciones iniciales de la EDO \(\frac{dy}{dx}= x^2-y\)

def ode_f5(x, y):
    return x**2-y
###### Symbols ODE ##############3
edo5=X**2-Y

##### Show Graphics #######
plots_ODE(ode_f5,edo5)

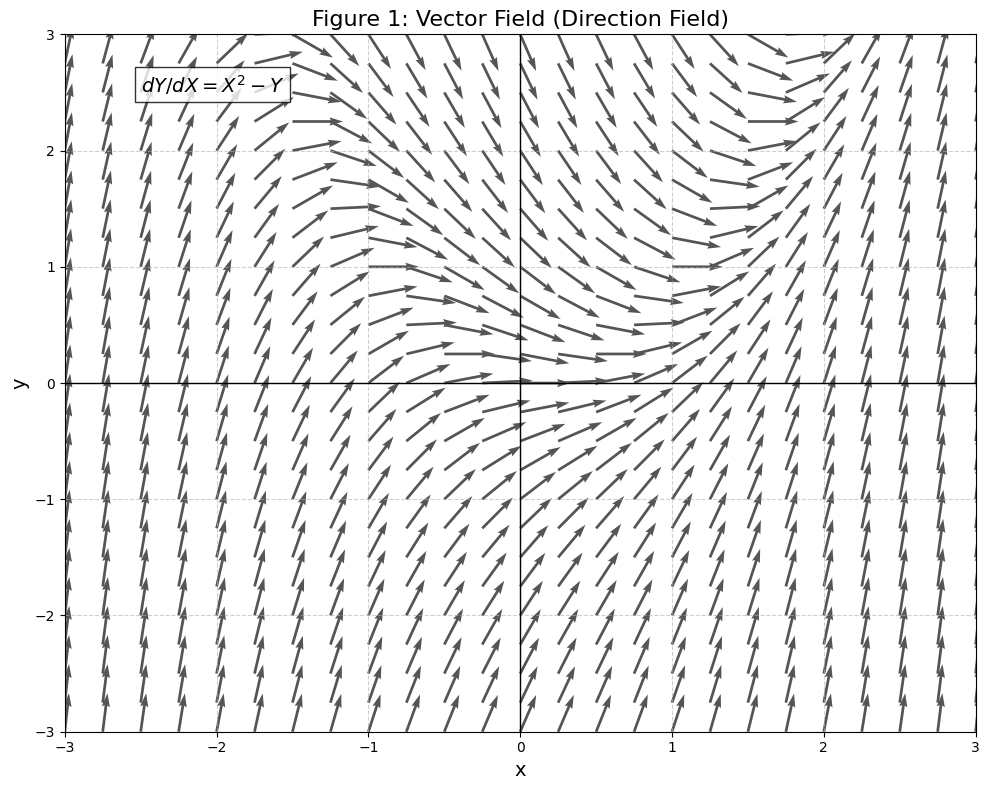

--- Differential Equation Visualizer ---

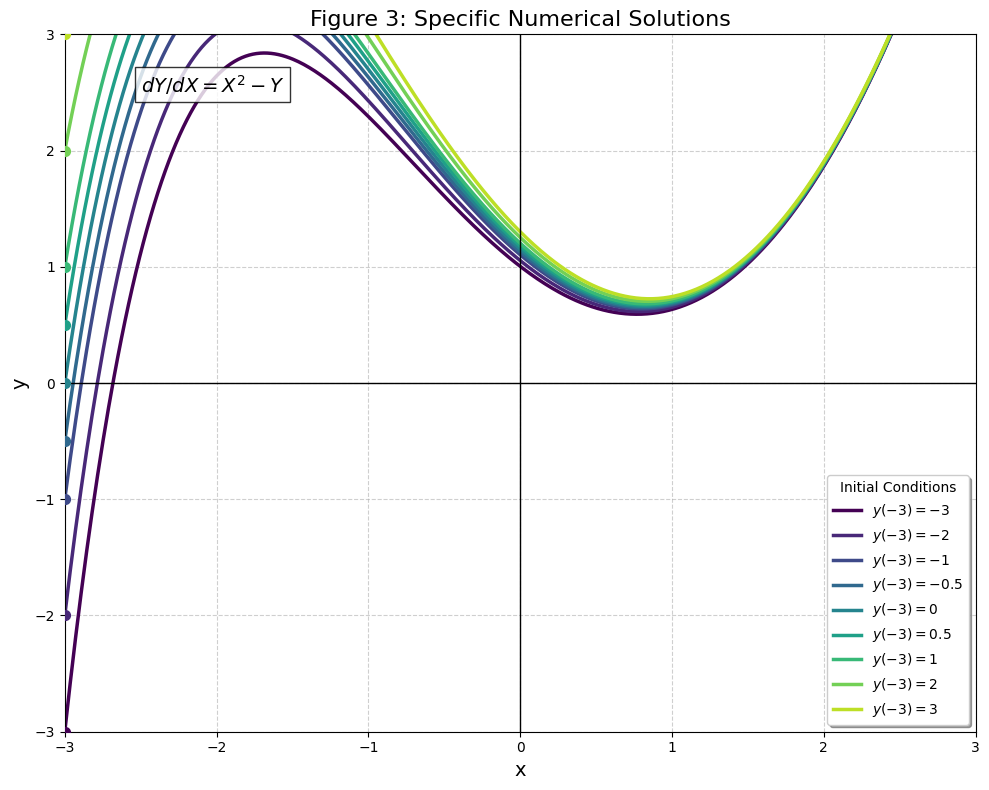

\(\displaystyle dY/dX = X^{2} - Y\)

Domain: x in (-3, 3), y in (-3, 3)

Generating 25 integral curves...

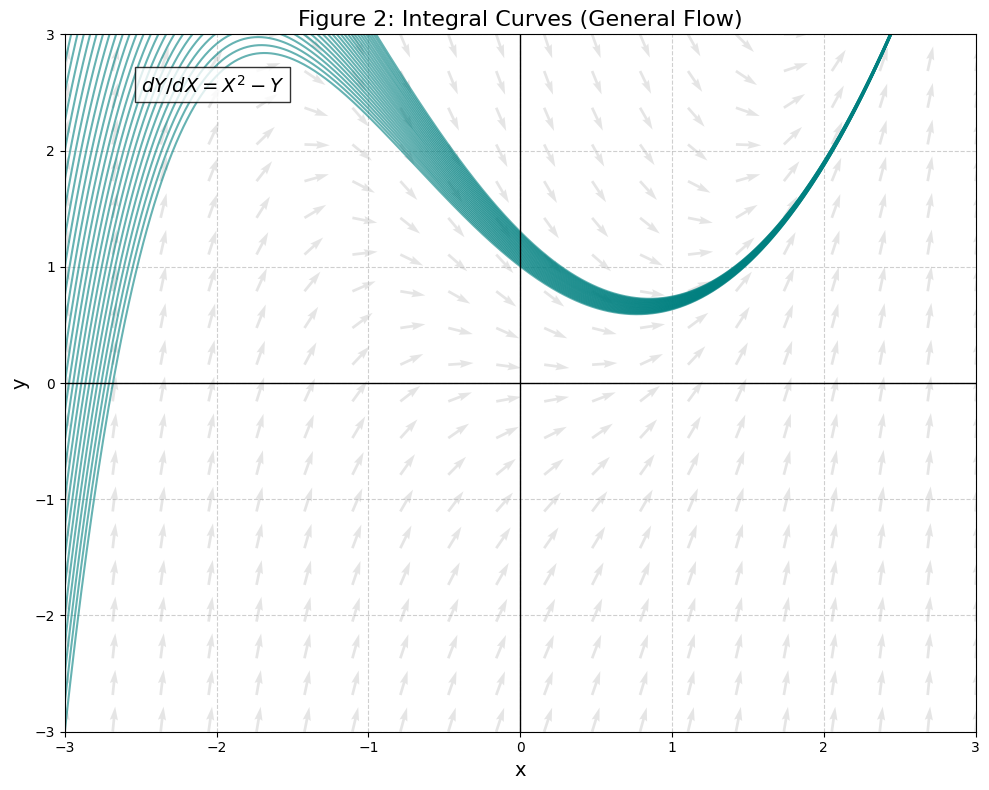

Generating specific solutions...

Sexto Ejemplo

Graficamos los campos vectoriales, curvas integrales y soluciones con condiciones iniciales de la EDO \(\frac{dy}{dx}=\sin(x-y)\)

def ode_f6(x, y):
    return np.sin(x-y)
###### Symbols ODE ##############3
edo6=sp.sin(X-Y)

##### Show Graphics #######
plots_ODE(ode_f6,edo6)

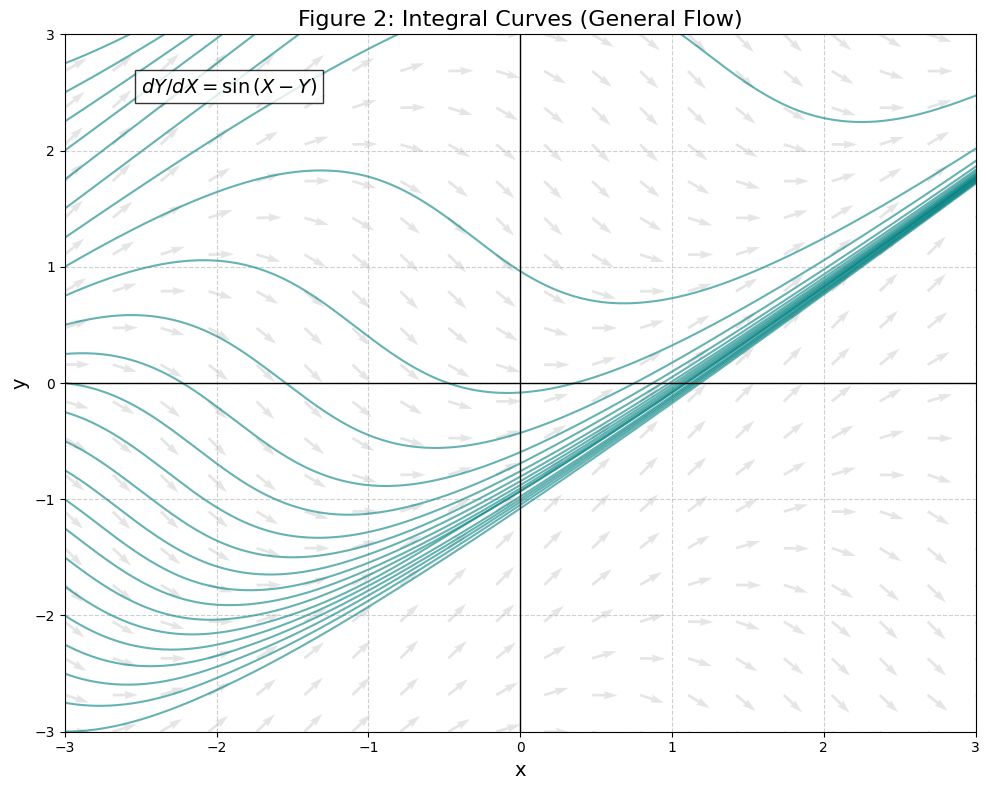

--- Differential Equation Visualizer ---

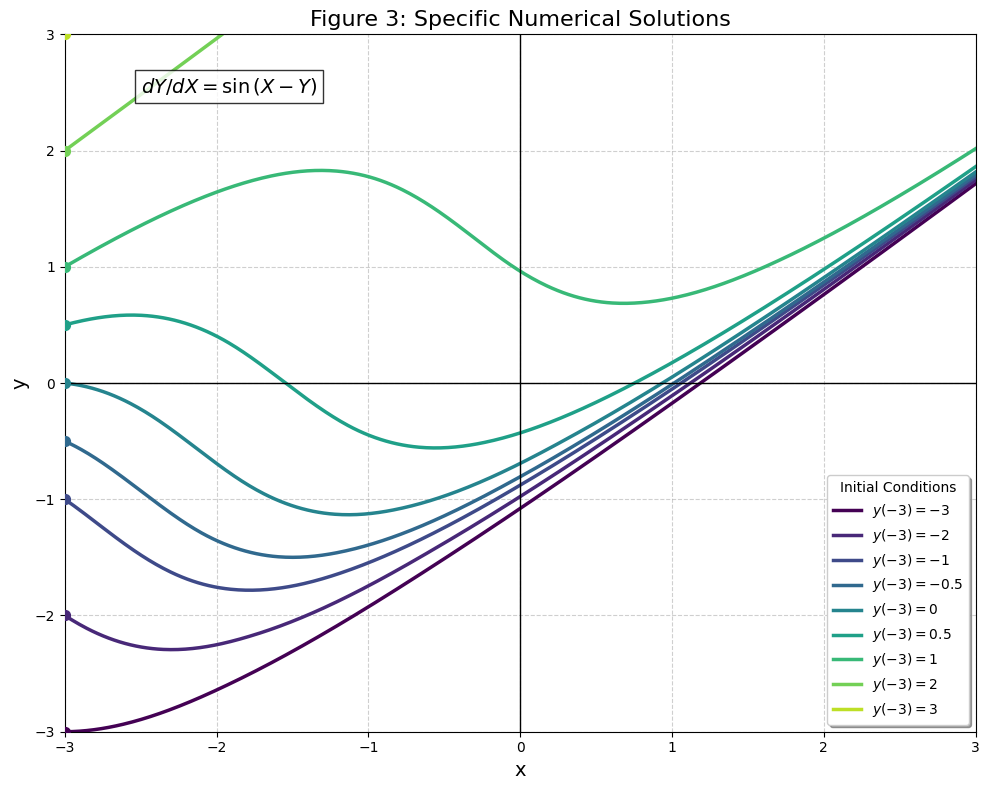

\(\displaystyle dY/dX = \sin{\left(X - Y \right)}\)

Domain: x in (-3, 3), y in (-3, 3)

Generating 25 integral curves...

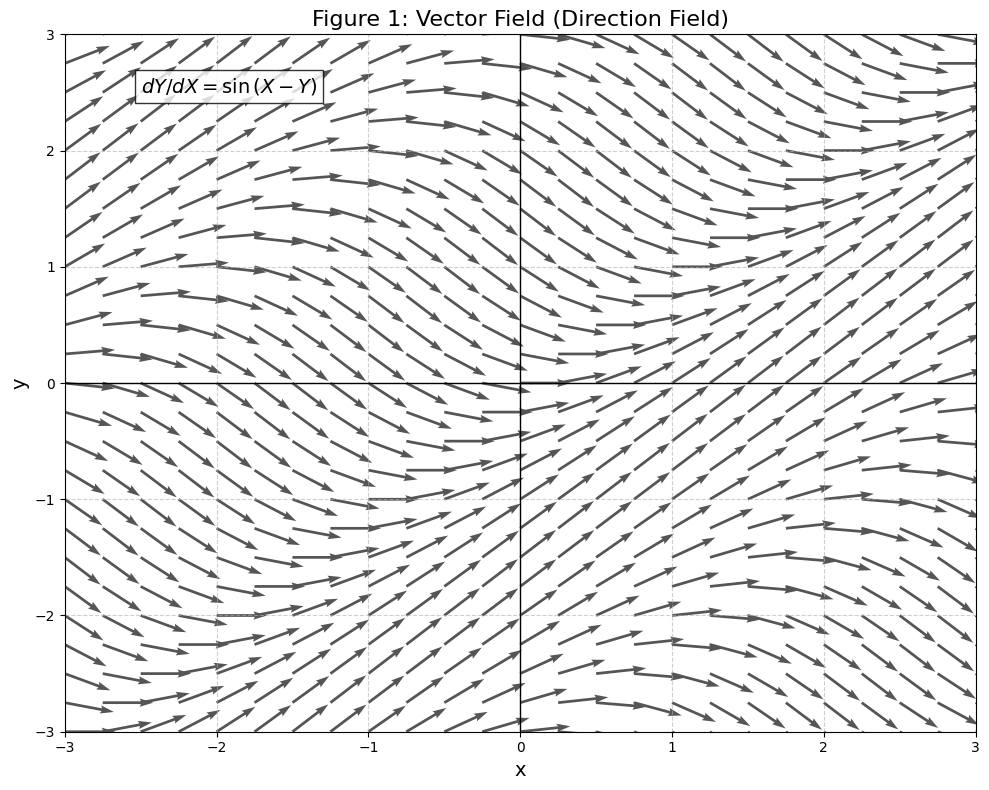

Generating specific solutions...

Septimo Ejemplo

Graficamos los campos vectoriales, curvas integrales y soluciones con condiciones iniciales de la EDO \(\frac{dy}{dx}=-6xy\)

def ode_f7(x, y):
    return -6*x*y
###### Symbols ODE ##############3
edo7=-6*X*Y

##### Show Graphics #######
plots_ODE(ode_f7,edo7)

--- Differential Equation Visualizer ---

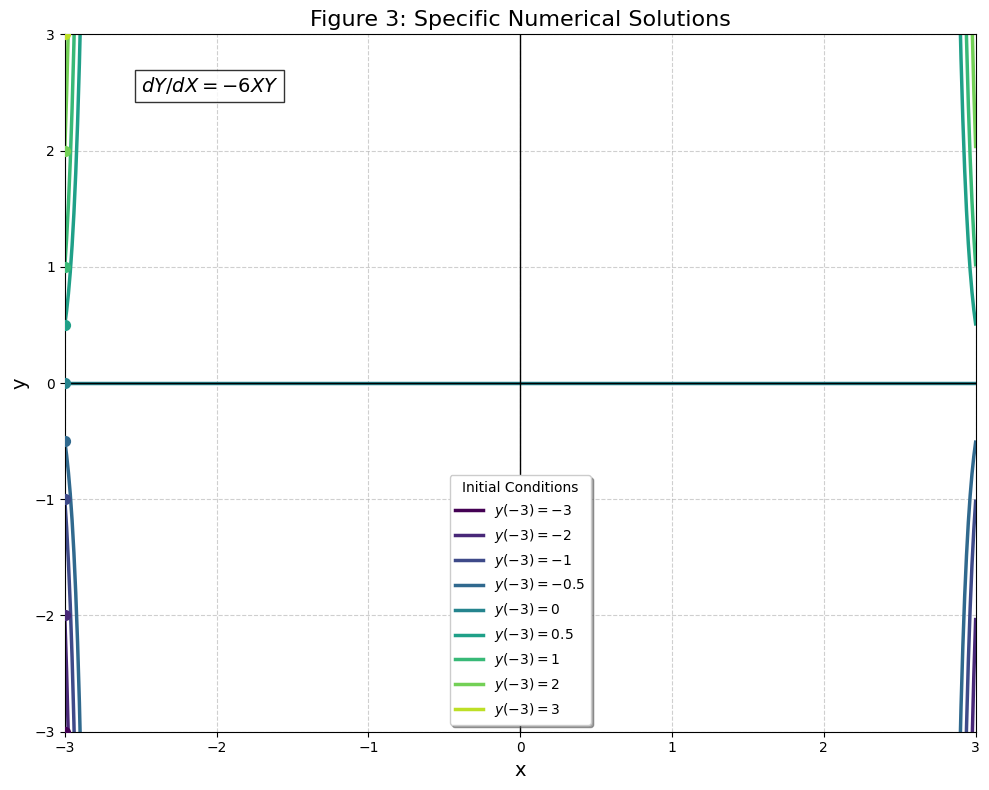

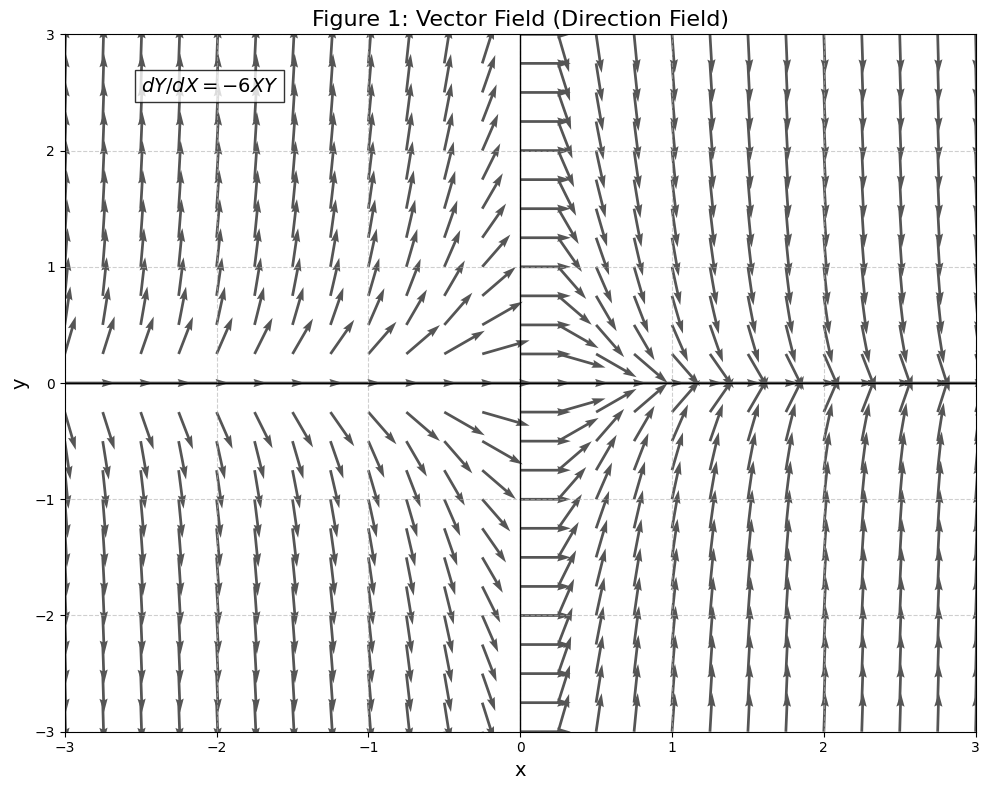

\(\displaystyle dY/dX = - 6 X Y\)

Domain: x in (-3, 3), y in (-3, 3)

Generating 25 integral curves...

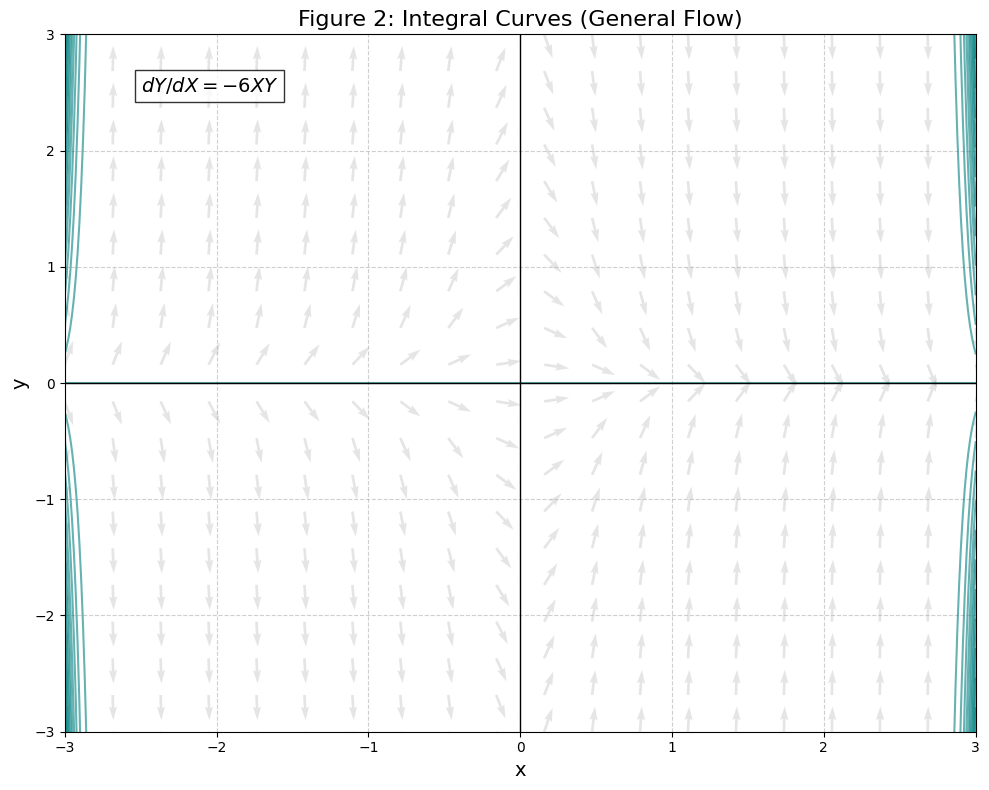

Generating specific solutions...

Octavo Ejemplo

Graficamos los campos vectoriales, curvas integrales y soluciones con condiciones iniciales de la EDO \(\frac{dy}{dx}= \frac{4-2x}{3y^2-5}\)

def ode_f8(x, y):
    return (4-2*x)/(3*y**2-5)
###### Symbols ODE ##############3
edo8=(4-2*X)/(3*Y**2-5)

##### Show Graphics #######
plots_ODE(ode_f8,edo8)

--- Differential Equation Visualizer ---

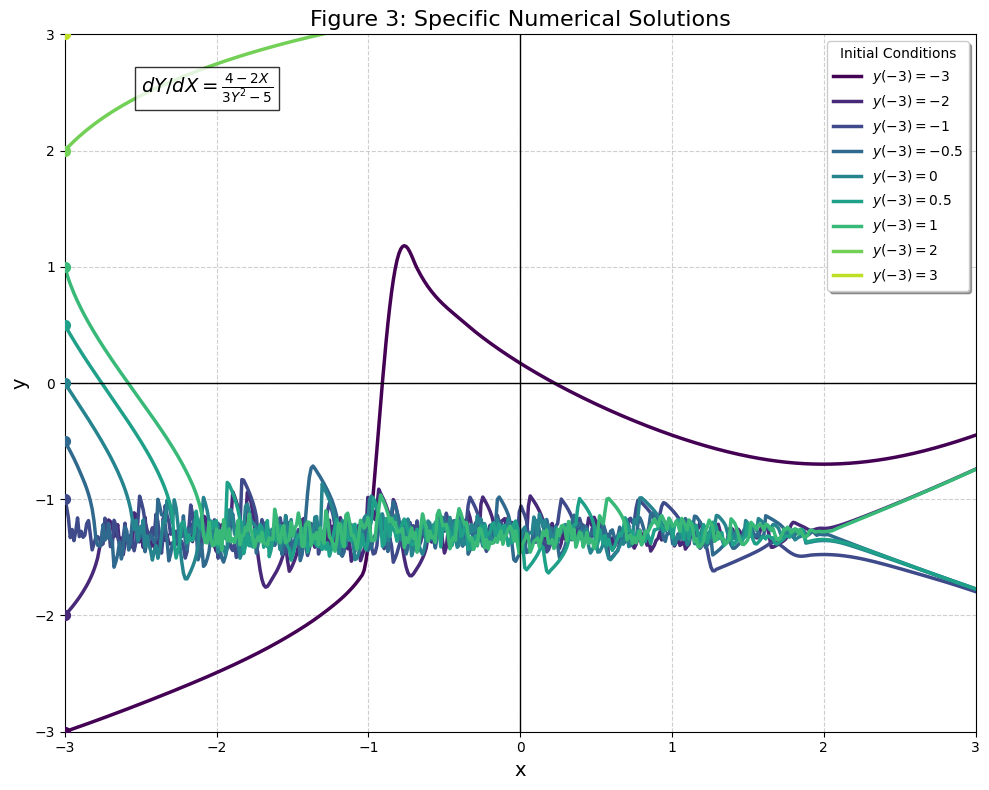

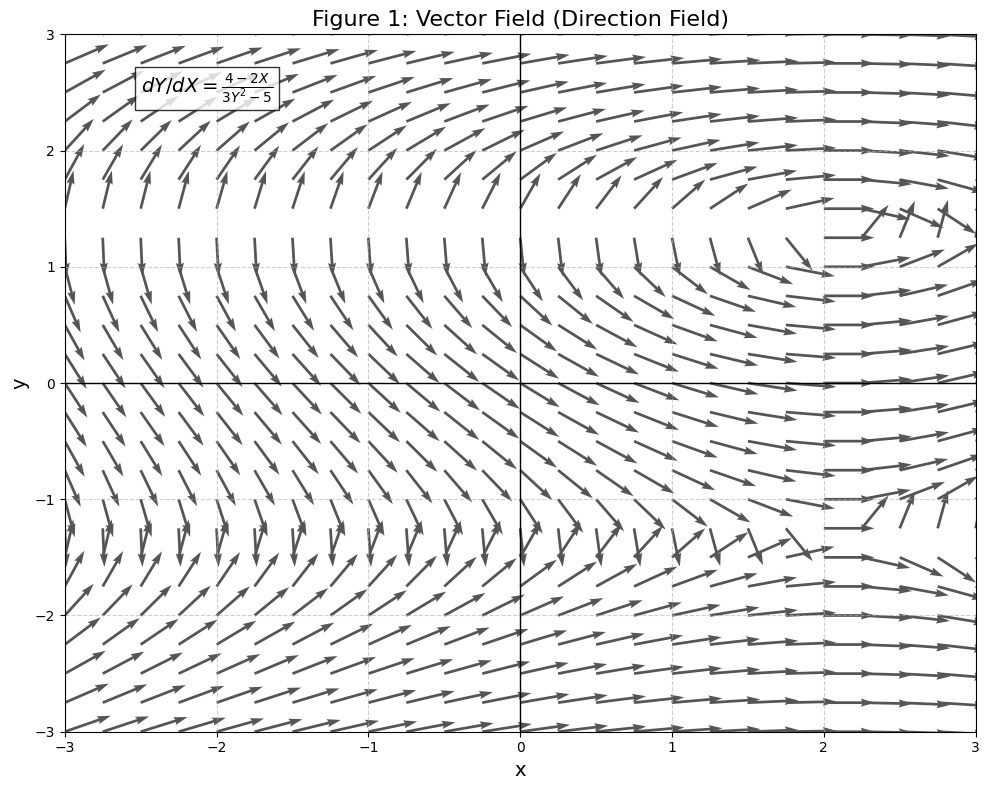

\(\displaystyle dY/dX = \frac{4 - 2 X}{3 Y^{2} - 5}\)

Domain: x in (-3, 3), y in (-3, 3)

Generating 25 integral curves...

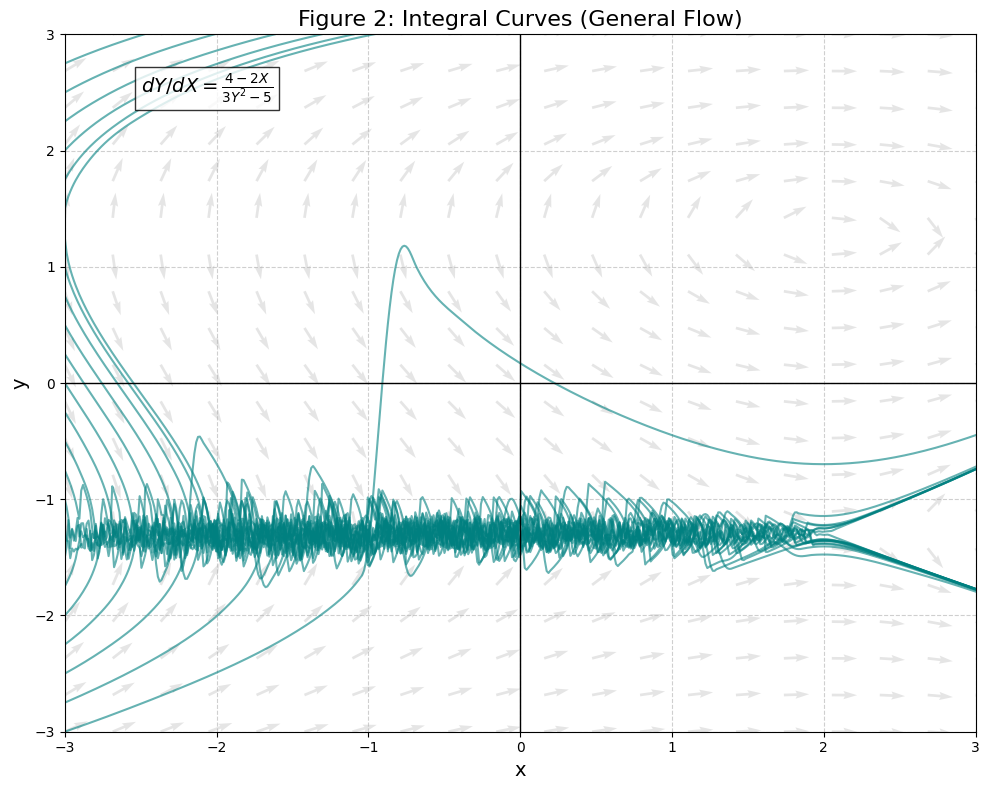

Generating specific solutions...
